Approved Vendor WA30THR2

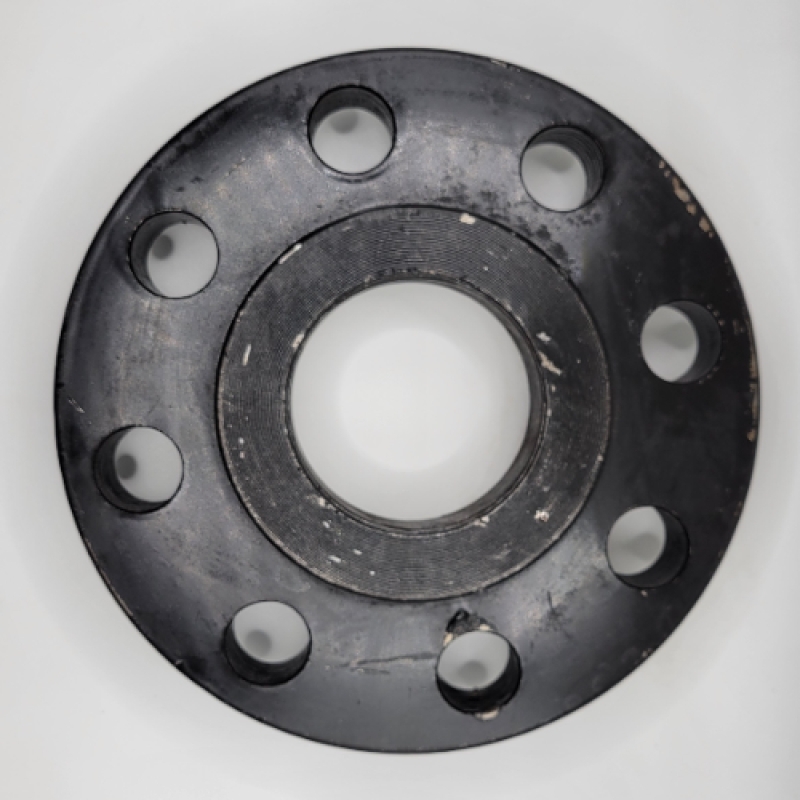

Raised Face Flange, 2 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb
- Brand: Approved Vendor
- Manufacturer:Approved Vendor
- MKSPN: WA30THR2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
Raised Face, 2 in Nominal, 0.81 in Thickness, Thread Connection, 6-1/2 in OD, 300 lb Pressure Class, 3.31 in Diameter Hub, 1-1/4 in Length Through Hub, Forged Carbon Steel
| Bolt Circle Diameter | : | 5.00 in |
| Bolt Hole Size | : | 3/4 in |
| Bolt Size | : | 5/8 in |
| Domestic/Import | : | Import |
| End Style | : | FNPT |
| Finish | : | Black |
| Hub Diameter | : | 3.31 in |
| Item Type | : | Threaded Flange |
| Length Through Hub | : | 1-1/4 in |
| Material | : | Carbon Steel |
| Method Of Manufacture | : | Weld |
| Nominal/Diameter Size | : | 2 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 6.50 in |
| Pressure Class | : | 300 lb |
| Temperature Rating | : | -20 to 100 deg F |
| Thickness | : | 0.81 in |
| Type | : | Raised Face |
