Approved Vendor GRRF1/81506

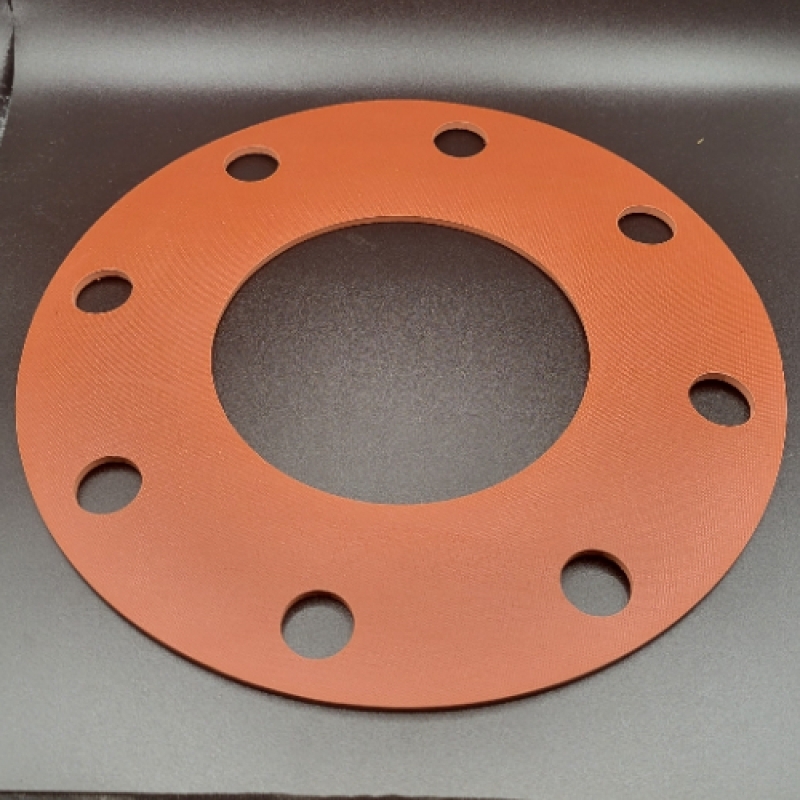

6 inch, 1/8 Inch Thickness, 150 LB, Full Face, Red Rubber, Flange Gasket

  • Brand: Approved Vendor
  • Manufacturer:Approved Vendor
  • MKSPN: GRRF1/81506
  • Min. Order Qty: 1
  • Qty. Interval: 1

6 inch Full Face Gasket, SBR Red Rubber, 1/8 inch Thickness, 8 bolt holes, Bolt Hole Diameter: 7/8 inch, Tempature range (F): 180 to -20, Pressure Class 150, Color: Red, For Use With: Wide Range of Fluids, Excluding: Gasoline, Oil, Alkalis, and Acids

Bolt Circle Diameter      :      9.50 in
Bolt Hole Size      :      7/8 in
Color      :      Red
Inside Diameter      :      6.625 in
Item Type      :      Gasket-Full Face
Material      :      Red Rubber
Nominal/Diameter Size      :      6 in
Number of Bolt Holes      :      8
Outside Diameter      :      11.00 in
Pressure Class      :      150 lb
Pressure Rating      :      700 psi
Series      :      Red SBR Rubber
Temperature Range      :      180 to -20 deg f
Thickness      :      1/8 in
