DRESSER® PIPELINE SOLUTIONS SR01151 GRB34SR2

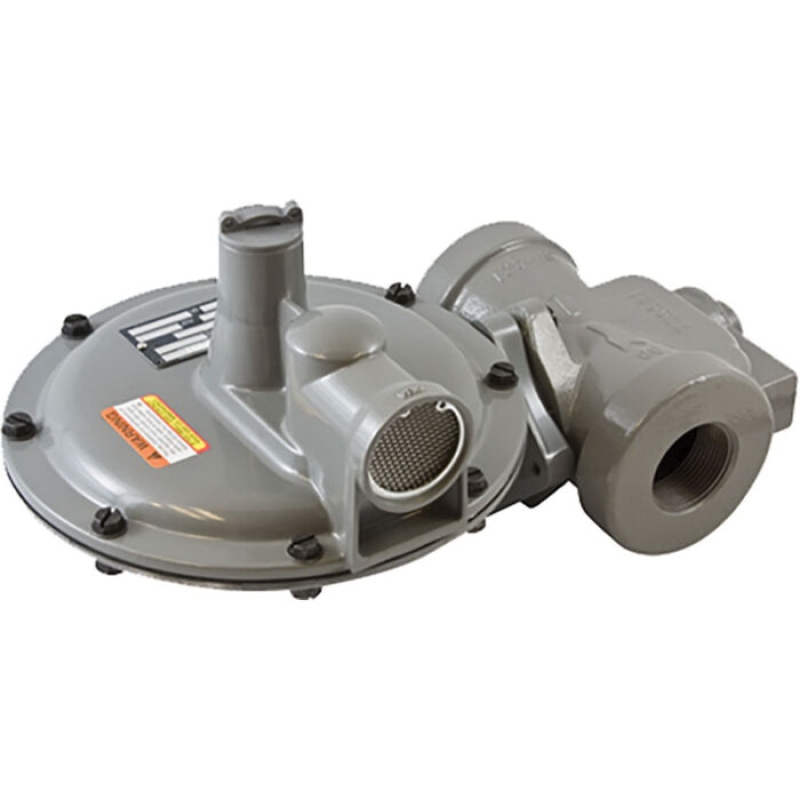

DRESSER® PIPELINE SOLUTIONS B34SR Series SR01151 Regulator, 2 in Nominal, NPT, 125 psig Pressure, 7500 scfh, Cast Iron
- Brand: DRESSER® PIPELINE SOLUTIONS
- Manufacturer:Dresser Utility Solutions
- MKSPN: GRB34SR2
- MPN: SR01151
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 4/BX
-
Login or Register for pricing
The B34SR is the internal relief version of the B34S Series. This model features an internal relief valve with a 1 in vent.
DRESSER® PIPELINE SOLUTIONS Regulator, B34SR Series, 2 in Nominal, NPT Connection, 5/8 x 3/4 in Orifice, Natural Gas Media, Pressure Class: 10 lb, 125 psig, Cast Iron, Stainless Steel Trim, 7500 scfh Flow Rate
| Connection Type | : | NPT |
| Flow Rate | : | 7500 scfh |
| Material | : | Cast Iron |
| Media | : | Natural Gas |
| Nominal Size | : | 2 in |
| Orifice Size | : | 5/8 x 3/4 in |
| Pressure Class | : | 10 lb |
| Pressure Rating | : | 125 psig |
| Series | : | B34SR Series |
| Trim Material | : | Stainless Steel |
- Interchangeable brass orifice
- 27 sq-in of diaphragm area
- Molded diaphragm consisting of Buna-N and nylon
- Upper diaphragm plate of plated steel
- Stainless steel lever pin
- Zinc with dichromate-plated steel lever
- One-piece molded Buna-N valve seat
- Anodized aluminum valve stem
- Delrin® vent valve with Buna-N seat
- Stainless steel vent screen
- Die cast aluminum seal cap
- Field interchangeable adjustment spring
- Controlled size breather orifice eliminates pulsation and provides normal action at low flows
- Wide range of valve body sizes including NPT and flange connections
