DRESSER® PIPELINE SOLUTIONS SR02467 GRB34R2

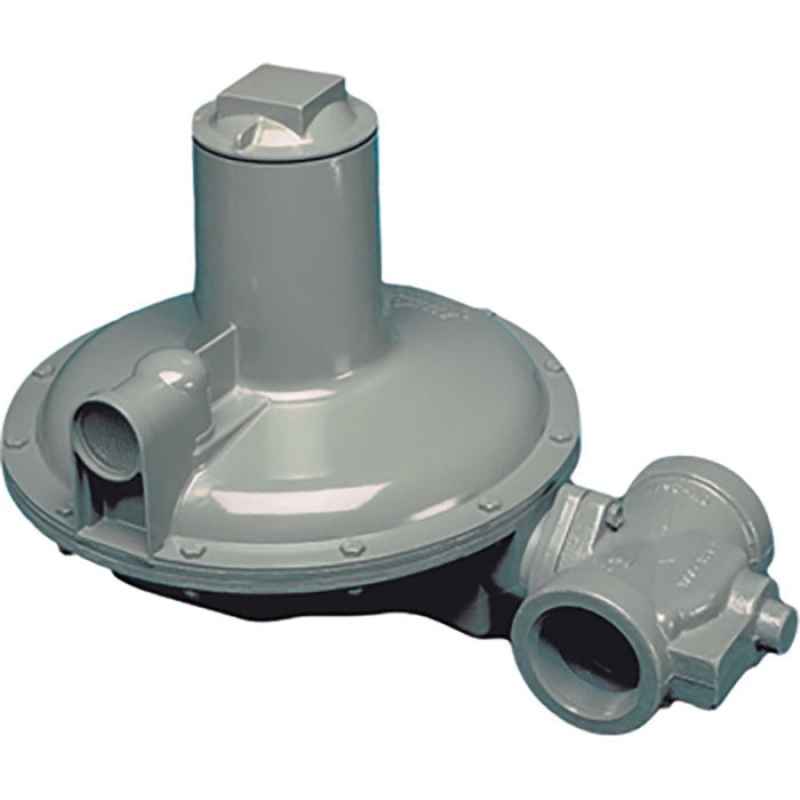

DRESSER® PIPELINE SOLUTIONS B34R Series SR02467 Regulator, 2 in Nominal, NPT, 125 psig Pressure, 10000 scfh, Cast Iron
- Brand Name: DRESSER® PIPELINE SOLUTIONS
- Manufacturers: Dresser Utility Solutions
- MKSPN: GRB34R2
- MPN: SR02467
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: 1/BX
-
Login or Register for pricing
The B34R is the internal relief version of the B34 Series. This model features an adjustable loading ring for controlled boost at higher flows and a 1 in internal relief valve.
DRESSER® PIPELINE SOLUTIONS Regulator, B34R Series, 2 in Nominal, NPT Connection, 7/8 x 1 in Orifice, Natural Gas Media, Pressure Class: 20 lb, 125 psig, Cast Iron, Stainless Steel Trim, 10000 scfh Flow Rate
| Connection Type | : | NPT |
| Flow Rate | : | 10000 scfh |
| Material | : | Cast Iron |
| Media | : | Natural Gas |
| Nominal Size | : | 2 in |
| Orifice Size | : | 7/8 x 1 in |
| Pressure Class | : | 20 lb |
| Pressure Rating | : | 125 psig |
| Series | : | B34R Series |
| Trim Material | : | Stainless Steel |
- Interchangeable brass orifice
- 78 sq-in of diaphragm area
- Field interchangeable adjustment spring
- Controlled size breather orifice eliminates pulsation and provides normal action at low flows
- Wide range of valve body sizes including NPT and flange connections
