DRESSER® PIPELINE SOLUTIONS SR09506 GRB31R11/4

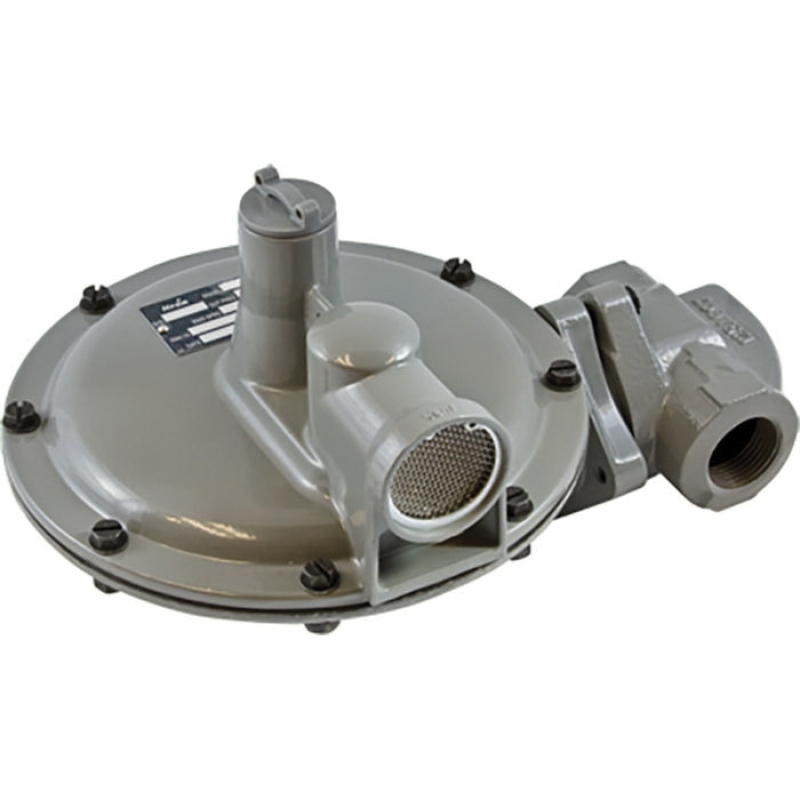

DRESSER® PIPELINE SOLUTIONS B31R Series SR09506 Regulator, 1-1/4 in Nominal, NPT, 125 psig Pressure, 2500 scfh, Cast Iron
- Brand: DRESSER® PIPELINE SOLUTIONS
- Manufacturer:Dresser Utility Solutions
- MKSPN: GRB31R11/4
- MPN: SR09506
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold As: 8/BX
-
Login or Register for pricing
The B31R is the internal relief valve version of the B31 Series. The 1 in internal relief valve provides exceptional relief capacity.
DRESSER® PIPELINE SOLUTIONS Regulator, B31R Series, 1-1/4 in Nominal, NPT Connection, 1/2 in Orifice, Natural Gas Media, Pressure Class: 40 lb, 125 psig, Cast Iron, Aluminum Trim, Neoprene Softgoods, 2500 scfh Flow Rate
| Connection Type | : | NPT |
| Flow Rate | : | 2500 scfh |
| Material | : | Cast Iron |
| Media | : | Natural Gas |
| Nominal Size | : | 1-1/4 in |
| Orifice Size | : | 1/2 in |
| Pressure Class | : | 40 lb |
| Pressure Rating | : | 125 psig |
| Series | : | B31R Series |
| Softgoods Material | : | Neoprene |
| Trim Material | : | Aluminum |
- Field interchangeable orifice
- 27 sq-in of diaphragm area
- Controlled breather orifice size eliminates pulsation and provides normal actuation at low flows
- Wide range of NPT valve body sizes including mixed inlet and outlet sizes, angle body
