Dixon® GF36 DGF36

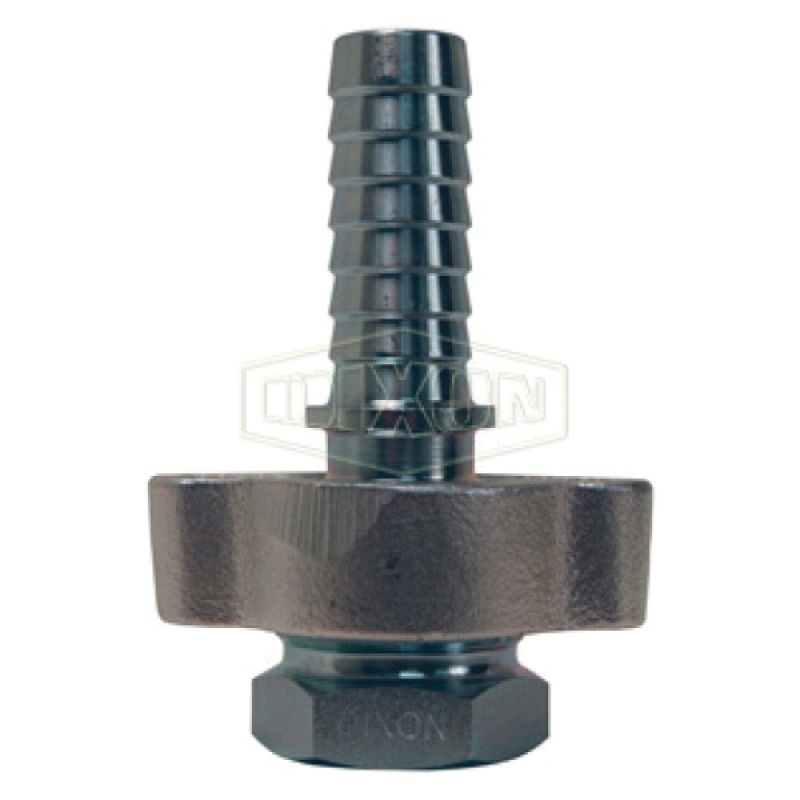

Dixon® Boss® GF36 Ground Joint Complete Coupling With Female Spud, 1 in, Hose Shank x NPT End, Iron/Steel, Plated

  • Brand Name: Dixon®
  • Manufacturers: Dixon Valve & Coupling
  • MKSPN: DGF36
  • MPN: GF36
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Ground Joint Complete Coupling, 1 in Nominal/Diameter Size, Iron/Steel, Hose Shank x NPT End Style, Finish: Plated, 5-1/8 in L x 3-9/16 in W, Positive Metal to Polymer Seal

Dimensions      :      5-1/8 in L x 3-9/16 in W
End Style      :      Hose Shank x NPT
Finish      :      Plated
Material      :      Iron/Steel
Nominal/Diameter Size      :      1 in
Seal      :      Positive Metal to Polymer
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment
  • The stem part that is clamped to the hose is the other half, the two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
  • Leak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spud
  • The non-metallic polymer seat resists most chemicals found in manufacturing facilities
  • Easy to seal
