Watson McDaniel WSTTV-13-N-SS TWMWSTTV13NSS

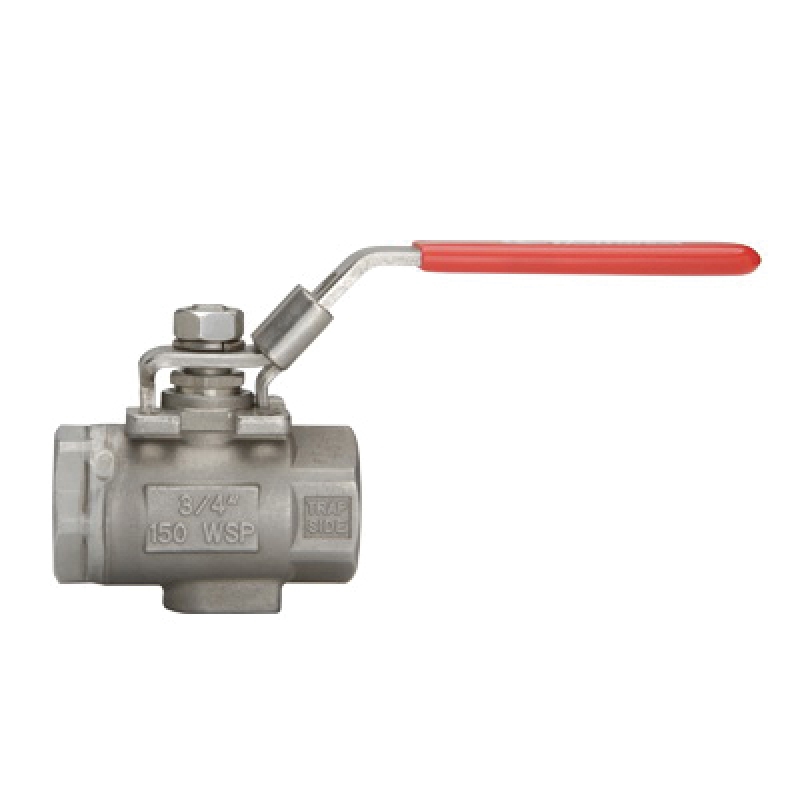

Watson McDaniel WSTTV-13-N-SS Steam Trap Test Valve, 3/4 in Nominal, NPT End, 150 psi Pressure, Stainless Steel Body, 300 Stainless Steel Handle

  • Brand: Watson McDaniel
  • Manufacturer:Watson McDaniel
  • MKSPN: TWMWSTTV13NSS
  • MPN: WSTTV-13-N-SS
  • Min. Order Qty: 1
  • Qty. Interval: 1

The WSTTV steam trap test valve offers simple, immediate and visible diagnosis of any steam trap. Turning the handle 90 deg to the test position will direct flow of steam trap out the test port for visual evaluation of discharge.

Watson McDaniel Steam Trap Test Valve, NPT End Style, WSTTV Series, 150 psi, 3/4 in Nominal, Stainless Steel Body, RTFM Seat, 316 Stainless Steel Ball, 316 Stainless Steel Stem, Graphite Packing, 300 Stainless Steel Handle

Ball Material      :      316 Stainless Steel
Body Material      :      Stainless Steel
End Style      :      NPT
Handle Material      :      300 Stainless Steel
Nominal Size      :      3/4 in
Packing Material      :      Graphite
Pressure Rating      :      150 psi
Seat Material      :      RTFM
Series      :      WSTTV Series
Stem Material      :      316 Stainless Steel
  • Seal welded construction
  • Standard locking stainless steel handles
  • Single reduced bore/full porting (depending on size)
  • pdfInstruction/Installation Manual https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watson_McDaniel_WSTTV_12_N_SS_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watson_McDaniel_WSTTV_12_N_SS_Specification_Sheet.pdf
