Watson McDaniel WDF1-13-N TWMWDF113N

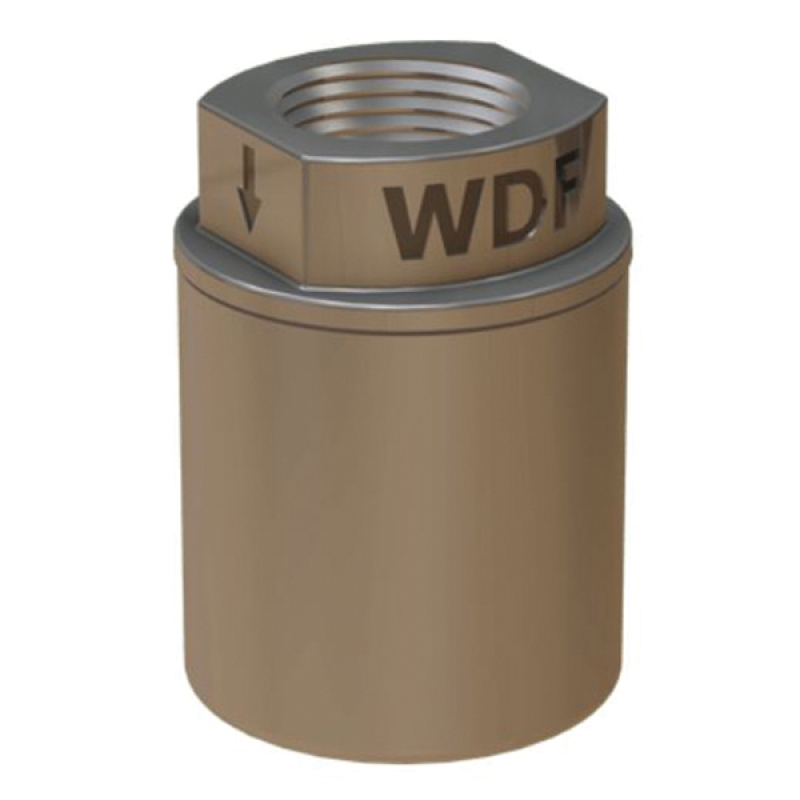

Watson McDaniel WDF1-13-N Diffuser With Inlet Connection Only, 3/4 in Nominal, NPT, Stainless Steel
- Brand: Watson McDaniel
- Manufacturer:Watson McDaniel
- MKSPN: TWMWDF113N
- MPN: WDF1-13-N
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
The WDF1 diffuser can be fitted to the outlet of any steam or air trap discharging to the atmosphere. Maximum operating pressure is 900 psig.
Watson McDaniel Diffuser, Stainless Steel, 900 psi, 1-11/16 in Dia x 2-5/16 in H, 3/4 in Nominal, NPT Connection, WDF1 Series
| Connection Type | : | NPT |
| Dimensions | : | 1-11/16 in Dia x 2-5/16 in H |
| Material | : | Stainless Steel |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 900 psi |
| Series | : | WDF1 Series |
- Designed to cushion the discharge of steam traps by suppressing the high-velocity condensate often associated with blast-type steam trap discharge
- Helps to reduce noise, erosion and flash steam
- Diffuser shall be all stainless steel with a wire mesh absorption element
Specification Sheet
