Watson McDaniel UC450SBR-12-N TWMUC450SBR12N

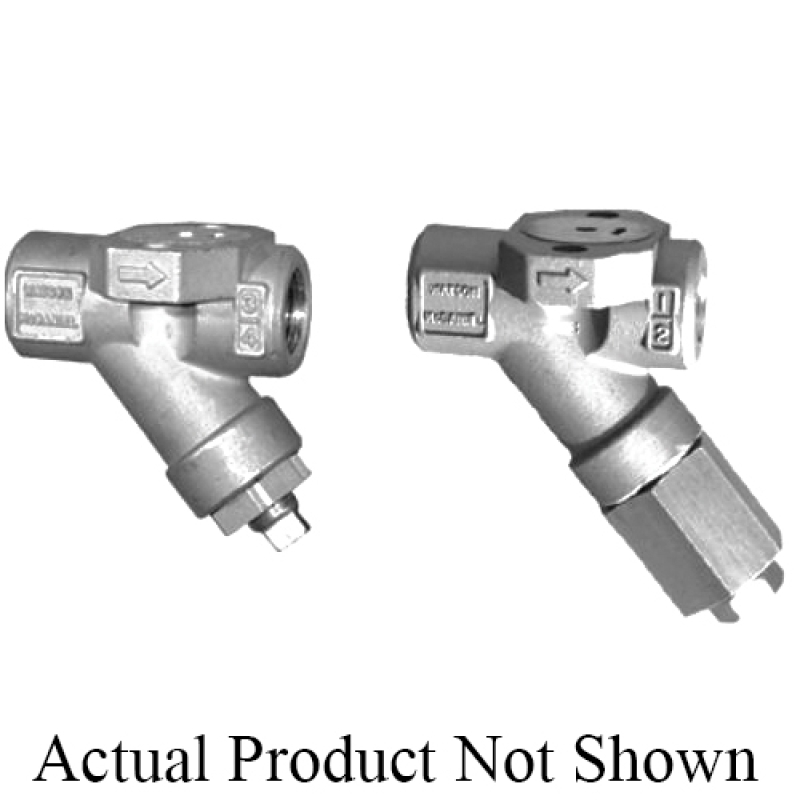

Watson McDaniel UC450SBR-12-N Connector With Strainer and Blowdown Valve, 1/2 in Nominal, NPT, Stainless Steel
- Brand: Watson McDaniel
- Manufacturer:Watson McDaniel
- MKSPN: TWMUC450SBR12N
- MPN: UC450SBR-12-N
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
The UC450S Series universal trap connectors reduce the time and manpower to replace steam traps. The stainless steel connector remains permanently in-line allowing steam trap module to be replaced in minutes. These universal connectors can be used for drip service on steam mains and steam supply lines, tracing or for small process equipment. Industrial standard 2-bolt universal connectors are commonly used in chemical plants, petrochemical refineries, paper mills and other industrial facilities. The UC450 connectors conform to industrial standards, making them compatible with other manufacturer's universal steam trap modules.
Watson McDaniel Connector, Stainless Steel, Right Flow Direction, 750 psi, 3.31 in L, 1/2 in Nominal, NPT Connection, 800 deg F, For Use With: Universal Quick-Change Trap Modules, UC450 Series
| Connection Type | : | NPT |
| Dimensions | : | 3.31 in L |
| Flow Direction | : | Right |
| Material | : | Stainless Steel |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 750 psi |
| Series | : | UC450 Series |
| Suitable For Use With | : | Universal Quick-Change Trap Modules |
| Temperature Rating | : | 800 deg F |
- Universal connector with two-bolt mounting allows for fast, easy replacement of trap module making it more cost effective than replacing conventional type steam traps
- Trap module can rotate 360 deg on the universal connector allowing any orientation during installation
- Compatible with other manufacturer's trap modules
Specification Sheet
