Approved Vendor WA15SOR6

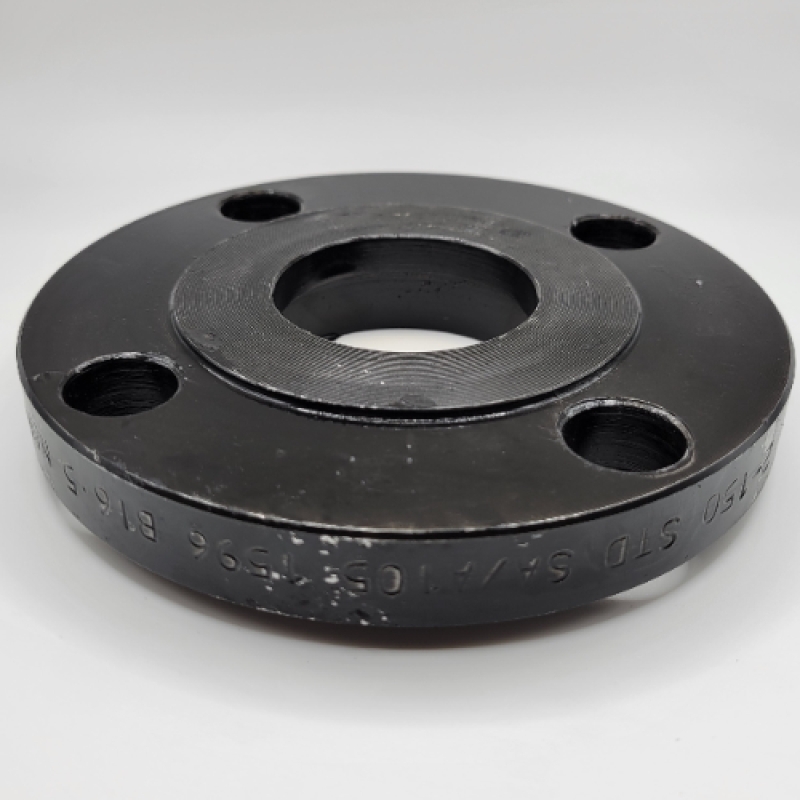

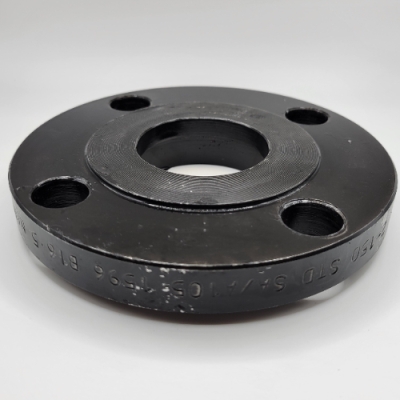

Raised Face Slip-On Flange, 6 in, Forged Carbon Steel, 150 lb
- Brand: Approved Vendor
- Manufacturer:Approved Vendor
- MKSPN: WA15SOR6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
Slip-On Flange, Raised Face, 6 in Nominal, 0.94 in Thickness, 11 in Outside Dia, 150 lb, 7.56 in Hub Dia, 1-1/2 in Length Through Hub, Forged Carbon Steel
| Bolt Circle Diameter | : | 9.50 in |
| Bolt Hole Size | : | 7/8 in |
| Bolt Size | : | 3/4 in |
| Domestic/Import | : | Import |
| End Style | : | Butt Weld |
| Finish | : | Black |
| Hub Diameter | : | 7.56 in |
| Item Type | : | Slip-On Flange |
| Length Through Hub | : | 1-1/2 in |
| Material | : | Carbon Steel |
| Method Of Manufacture | : | Weld |
| Nominal/Diameter Size | : | 6 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 11.00 in |
| Pressure Rating | : | 285 psi |
| Temperature Rating | : | -20 to 100 deg F |
| Thickness | : | 0.94 in |
| Type | : | Raised Face |
