Approved Vendor W154SWR3/4
Share
  1. pin-int
Email Print

Approved Vendor W154SWR3/4

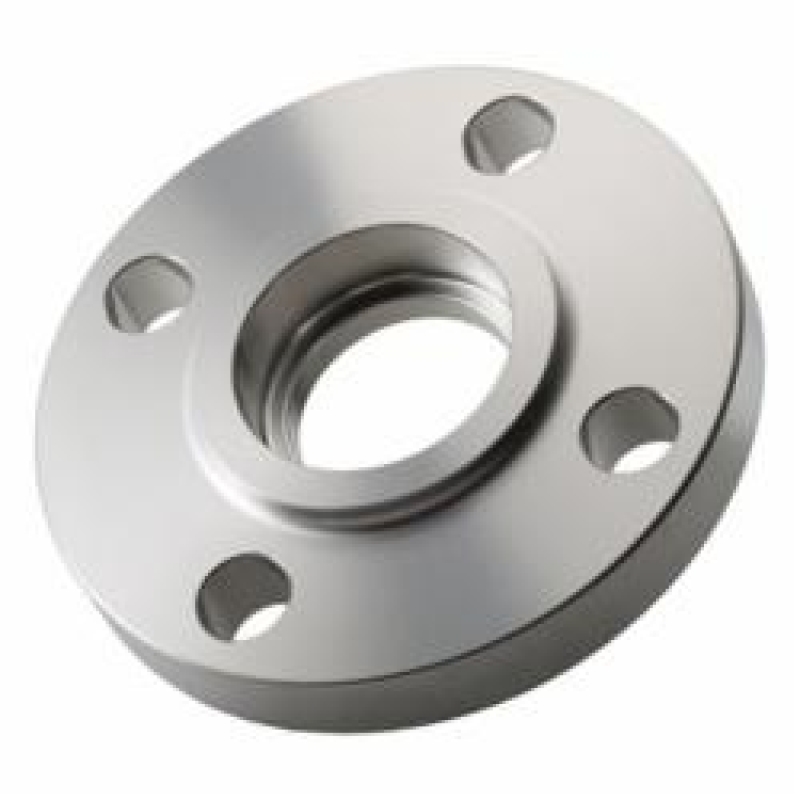

Raised Face Socket Weld Flange, 3/4 in, 304/304L Stainless Steel, 150 lb, SCH 40/STD Bore, Import

  • Brand: Approved Vendor
  • Manufacturer:Approved Vendor
  • MKSPN: W154SWR3/4
  • Min. Order Qty: 1
  • Qty. Interval: 1

Socket Weld Flange, Raised Face, 3/4 in Nominal, 1.09 in Inside Dia, 1/2 in Thickness, SCH 40/STD Bore, 2-3/4 in Bolt Circle, 4 Bolt Holes, 0.62 in, 3.88 in Outside Dia, 150 lb, 1-1/2 in Hub Dia, 0.62 in Length Through Hub, 304/304L Stainless Steel, Import

Bolt Circle Diameter      :      2.75 in
Bolt Hole Size      :      5/8 in
Bolt Size      :      1/2 in
Domestic/Import      :      Import
End Style      :      Socket Weld
Hub Diameter      :      1.50 in
Item Type      :      Socket Weld Flange
Length Through Hub      :      0.56 in
Material      :      304/304L Stainless Steel
Method Of Manufacture      :      Weld
Nominal/Diameter Size      :      3/4 in
Number of Bolt Holes      :      4
Outside Diameter      :      3.88 in
Pressure Class      :      150 lb
Thickness      :      0.44 in
Type      :      Raised Face

1/2 in Dia bolt
