WIKA® IL25600

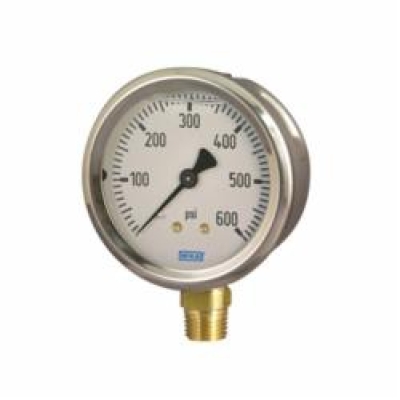

WIKA® 9767118 213.53 Bourdon Tube Pressure Gauge, 600 psi, 1/4 in NPT Connection, 2-1/2 in Dial, +/- 2-1-2 %, Glycerin Liquid Filled

  • Brand: WIKA®
  • Manufacturer:WIKA Instrument
  • MKSPN: IL25600
  • Min. Order Qty: 1
  • Qty. Interval: 1

WIKA® type 21X.53 gauges feature a stainless steel case for protection in harsh environments. The O-ring seal around the connection makes this gauge field liquid fillable. When filled, the 213.53 is excellent for high vibration and pulsation applications.

WIKA® Bourdon Tube Pressure Gauge, Series: 213.53, 600 psi, 1/4 in NPT, 2-1/2 in Dial Diameter, +/- 2-1-2 % Accuracy, Liquid Filled: Glycerin, -4 to 140 deg F, Lower Mount, 304 Stainless Steel Case, 2.69 in Dia

Accuracy      :      +/- 2-1-2 %
Dial Diameter      :      2-1/2 in
Item Type      :      Pressure Gauge
Material      :      304/304L Stainless Steel
Mounting Type      :      Lower
Nominal/Diameter Size      :      1/4 in
Pressure Rating      :      600 psi
Series      :      213.53
Temperature Rating      :      -40 to 140 deg f
Type      :      Liquid Filled Glycerin
Vibration and shock resistant (with liquid filling)
