Approved Vendor G3400F1/161501/2

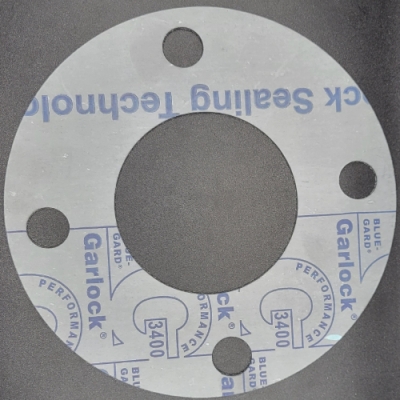

1/2 inch, 1/16 Inch Thickness, 150 LB, Full Face, 3400 Garlock Series, Flange Gasket
- Brand: Approved Vendor
- Manufacturer:Approved Vendor
- MKSPN: G3400F1/161501/2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
1/2 inch Full Face Gasket, 3400 Series Garlock, 1/16 inch Thickness, 4 bolt holes, Bolt Hole Diameter: 5/8 inch, Tempature range (F): 700 to -100, Pressure Class 150, Color: Gray/Black, For Use With: Water, Saturated Steam, And Inert Gas Applications, Not To Be Used With Compressed Air Applications
| Bolt Circle Diameter | : | 2.375 in |
| Bolt Hole Size | : | 5/8 in |
| Color | : | Gray/Black |
| Compliances | : | REACH Compliant, RoHS Compliant |
| Composition | : | Aramid Fiber with Nitrile Binder |
| Fiber | : | Aramid |
| Inside Diameter | : | 0.844 in |
| Item Type | : | Gasket-Full Face |
| Material | : | Blue Gard |
| Nominal/Diameter Size | : | 1/2 in |
| Number of Bolt Holes | : | 4 |
| Outside Diameter | : | 3.50 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 1200 psi |
| Rubber Chemical Name | : | Styrene-butadiene |
| Rubber Material | : | SBR |
| Series | : | 3400 |
| Temperature Range | : | 700 to -100 Deg f |
| Thickness | : | 1/16 in |
