nVent CADDY 5100050EG HG5101/2

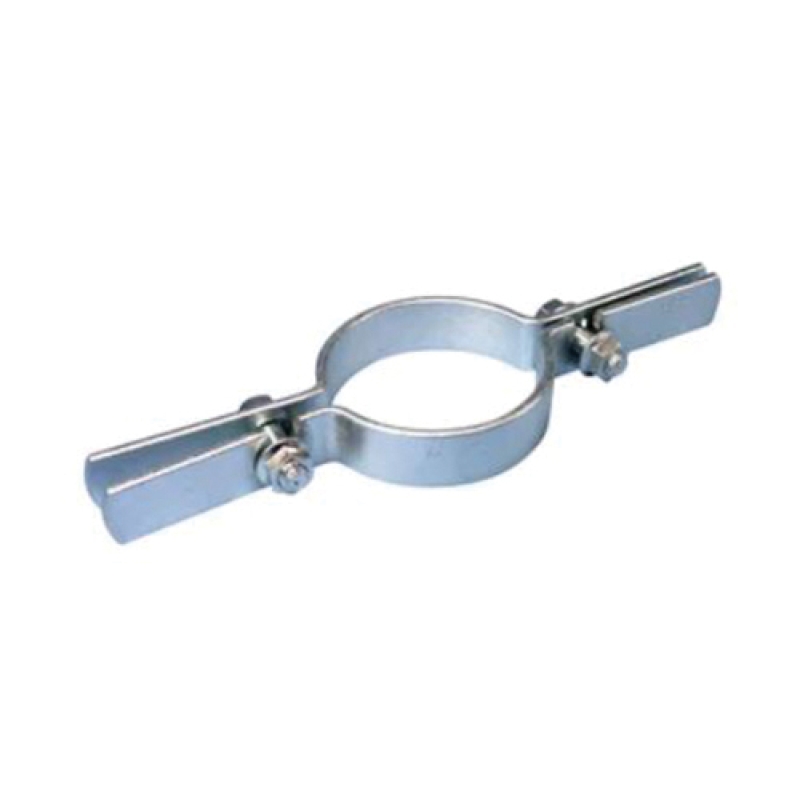

nVent CADDY 5100050EG EZ Riser Clamp, 1/2 in, 0.84 in OD, 255 lb Load, Steel, Electro-Galvanized

  • Brand: nVent CADDY
  • Manufacturer:nVent
  • MKSPN: HG5101/2
  • MPN: 5100050EG
  • UPC: 782856369189
  • Min. Order Qty: 1
  • Qty. Interval: 1

nVent CADDY EZ Riser Clamp, 1/2 in Nominal/Diameter Size, Steel, 510 Series, Finish: Electro-Galvanized, 0.84 in Outside Diameter, 7/16 in Hole, 255 lb Load, 8-1/2 in Length, 1 in Width, For Use With: Copper Tubes

Finish      :      Electro-Galvanized
Hole Size      :      7/16 in
Length      :      8-1/2 in
Load Capacity      :      255 lb
Material      :      Steel
Nominal/Diameter Size      :      1/2 in
Outside Diameter      :      0.84 in
Series      :      510 Series
Suitable For Use With      :      Copper Tubes
Width      :      1 in
  • Recommended for suspending vertical steel pipe risers
  • Slotted holes make assembly easy, eliminating loose hardware
  • Serrated flange-head bolts eliminate need for wrenches on both bolt and nut
  • Clamp is fitted for steel pipe and should be installed below a coupling or shear lug, with bolts torqued to recommended value
  • Slotted holes and bolts for pipe sizes up to 12 in only
  • pdfCatalog https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_5100050EG_Catalog.pdf
  • pdfInstruction/Installation Manual https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_5110050CP_Instruction_Installation_Manual.pdf
