Approved Vendor G3500F1/81503

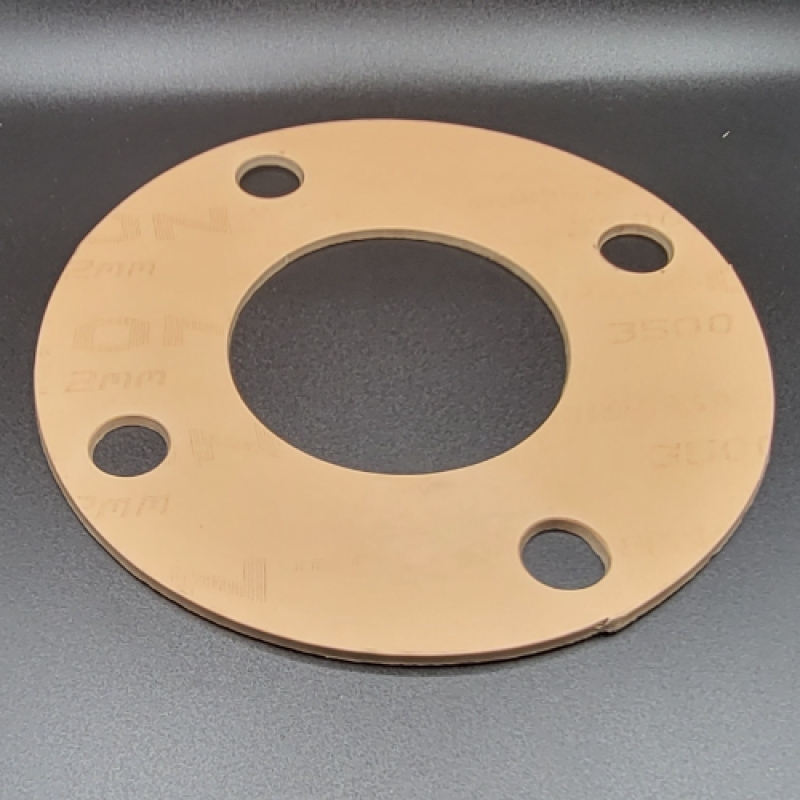

3 inch, 1/8 Inch Thickness, 150 LB, Full Face, 3500 Garlock Series, Flange Gasket
- Brand: Approved Vendor
- Manufacturer:Approved Vendor
- MKSPN: G3500F1/81503
- Min. Order Qty: 1
- Qty. Interval: 1
-
Login or Register for pricing
3 inch Full Face Gasket, 3500 Series Garlock, 1/8 inch Thickness, 4 bolt holes, Bolt Hole Diameter: 3/4 inch, Tempature range (F): 500 to -450, Pressure Class 150, Color: Fawn, For Use With: Strong Acids, Solvents, Hydrocarbons and Other Aggressive Media, Gasket Compound Material: PTFE with Silica.
| Bolt Circle Diameter | : | 6.00 in |
| Bolt Hole Size | : | 3/4 in |
| Color | : | Fawn |
| Compliances | : | ABS Certified, FDA Compliant, REACH Compliant, RoHS Compliant, USDA Approved, USP VI 87 Compliant, USP VI 88 Compliant, ADI/TSE Free, FDA Compliant, REACH Compliant, RoHS Compliant, USDA Approved, USP VI 87 Compliant, USP VI 88 Compliant, ADI/TSE Free |
| Inside Diameter | : | 3.50 in |
| Item Type | : | Gasket-Full Face |
| Material | : | Gylon |
| Nominal/Diameter Size | : | 3 in |
| Number of Bolt Holes | : | 4 |
| Outside Diameter | : | 7.50 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 1200 psi |
| Series | : | 3500 |
| Temperature Range | : | 500 to -450 deg f |
| Thickness | : | 1/8 in |
