CRANE® L47XUF*050 VC47XUF5

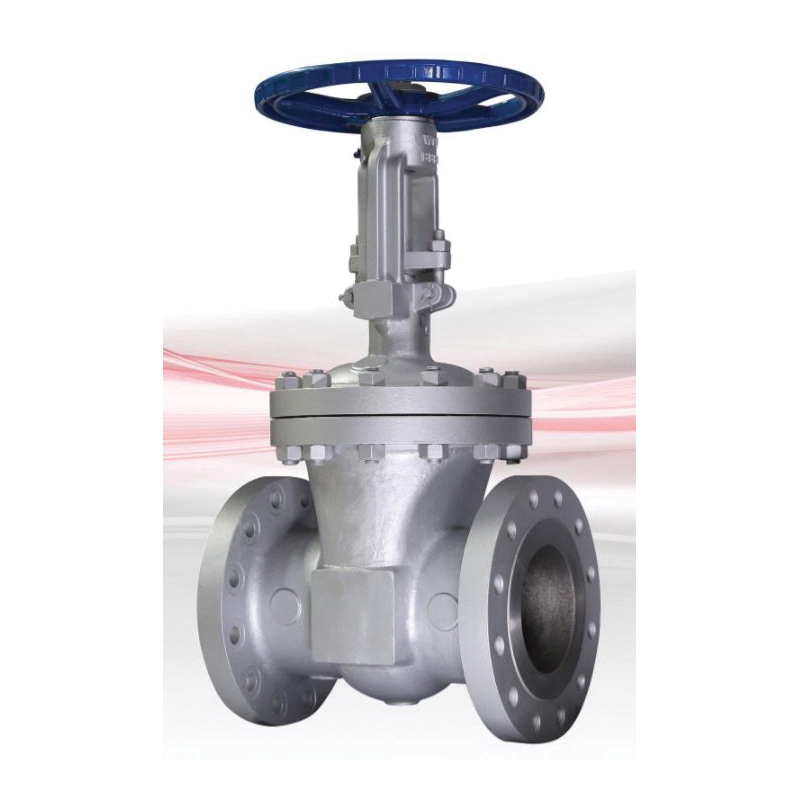

CRANE® 33XU-F Series L47XUF*050 Gate Valve, 5 in, Flanged End, Handwheel, Pressure Class: 300 lb, Carbon Steel

  • Brand: CRANE®
  • Manufacturer:Crane ChemPharma Energy
  • MKSPN: VC47XUF5
  • MPN: L47XUF*050
  • Min. Order Qty: 1
  • Qty. Interval: 1

CRANE® Gate Valve, 5 in Nominal/Diameter Size, Carbon Steel, Flanged End Style, Handwheel Actuator, Pressure Class: 300 lb, 33XU-F Series, 410 Stainless Steel Trim, 10 in Inlet to Outlet Length, 27.88 in Top to Inlet Center, 12 in Hand Wheel Diameter, 425 deg C, Graphite Softgoods

Actuator Type      :      Handwheel
End Style      :      Flanged
Hand Wheel Diameter      :      12 in
Inlet to Outlet Length      :      10 in
Material      :      Carbon Steel
Nominal/Diameter Size      :      5 in
Pressure Class      :      300 lb
Series      :      33XU-F Series
Softgoods Material      :      Graphite
Temperature Rating      :      425 deg C
Top to Inlet Center      :      27.88 in
Trim Material      :      410 Stainless Steel
  • Efficient stop valves with flow in either direction
  • Commonly used where a minimum pressure drop is important
  • Flexible wedge disc compensates for deformation of body due to pipe stress
  • Outside screw and yoke
  • Seat ring is seal welded to eliminate leak paths
  • Rising stem
  • pdfInstruction/Installation Manual https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/CRANE_L33XUF_040_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/CRANE_L33XUF_040_Specification_Sheet.pdf
