The WT2500 is a general purpose medium capacity thermostatic trap that can be used for steam tracing, as a drip trap on steam mains and steam supply lines, as well as for process applications. All internal working components can be replaced while the trap body remains in-line. Like all thermostatic traps, they are small, lightweight, operate over a wide pressure range and have excellent air handling capabilities. Discharging air at start-up allows steam to quickly enter the system. The WT2500 is an excellent choice for a variety of applications. Contains an extremely strong and rugged precision welded stainless steel thermal element which is highly-resistant to water hammer.

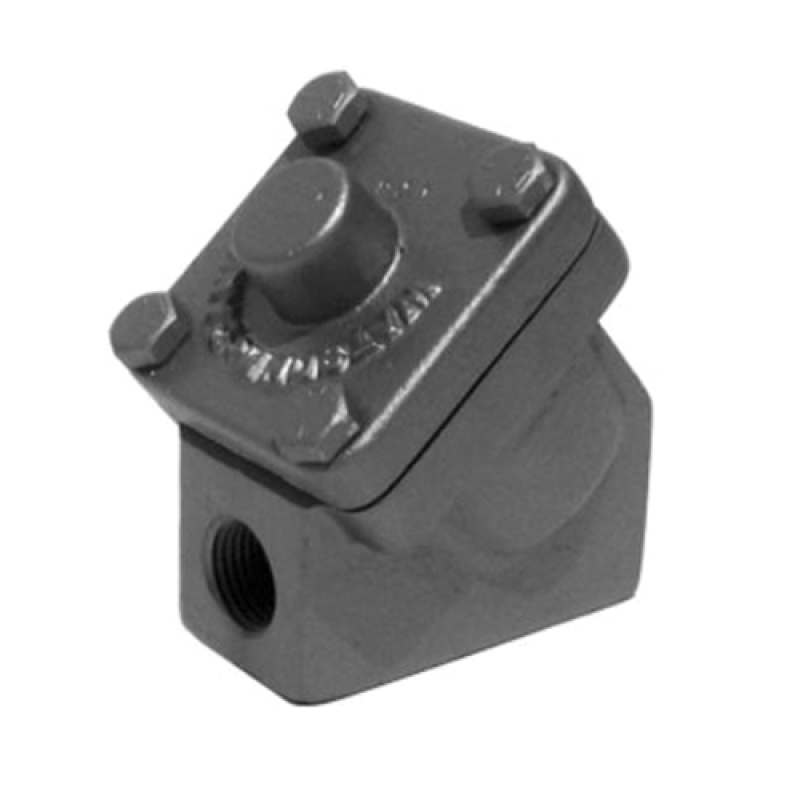

Watson McDaniel Repairable Thermostatic Steam Trap, 1/2 in Nominal, 3.6 in H, NPT End Style, Cast Iron, 250 psi, 406 deg F, WT2500 Series, 5/16 in Orifice, 416 Stainless Steel Seat, 416 Stainless Steel Valve, 3 in Inlet to Outlet Length

• The thermal element and seat can be easily removed and replaced in minutes with the trap body still in-line
• Thermostatic traps have excellent air handling capability
• Welded stainless steel thermal element resists shock from water hammer
• Freeze-proof when trap is installed in a vertical orientation allowing for complete condensate drainage
• Hardened stainless steel seat for extended service life

• Instruction/Installation Manual https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watson_McDaniel_WT2501_12_N_Instruction_Installation_Manual.pdf
• Specification Sheet https://7100msci-stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watson_McDaniel_WT2501_12_N_Specification_Sheet.pdf
