Spirax Sarco 66673 TSFTI2003/4

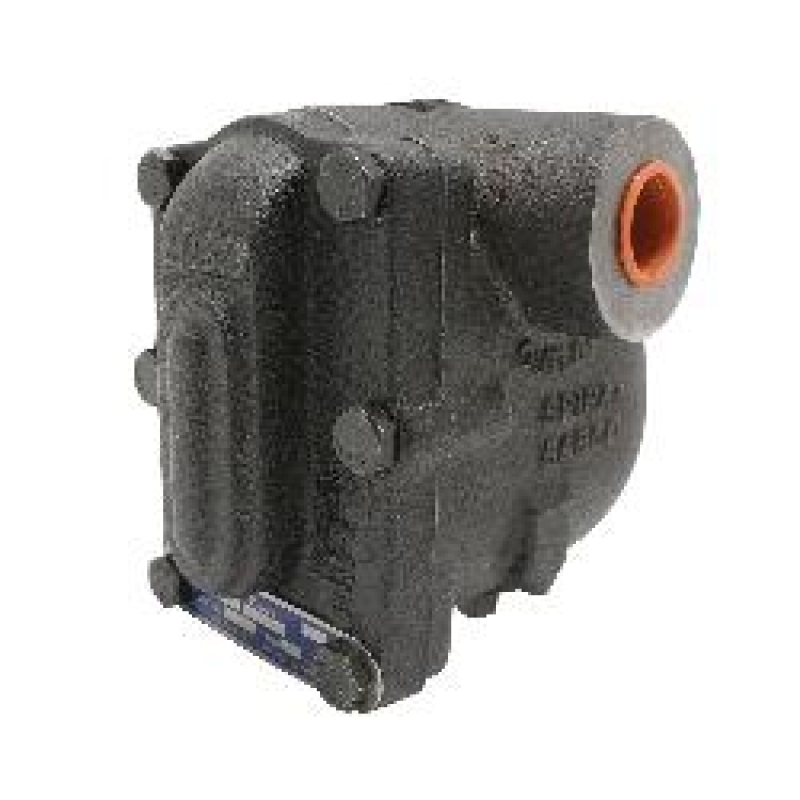

Spirax Sarco 66673, FTI-200 Float and Thermostatic Steam Trap, 3/4 in, FNPT, 450 deg F, 200 psi, Cast Iron

  • Brand: Spirax Sarco
  • Manufacturer:Spirax-Sarco Inc
  • MKSPN: TSFTI2003/4
  • MPN: 66673
  • Min. Order Qty: 1
  • Qty. Interval: 1

The Spirax Sarco® FTI contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. The in-line piping connections simplify installation.

Spirax Sarco Float and Thermostatic Steam Trap, 3/4 in Nominal, FNPT, 6-1/2 in Length, 200 psi, Cast Iron, 450 deg F, 5.8 in H x 4.8 in W

End Style      :      FNPT
Item Type      :      Float and Thermostatic Steam Trap
Length      :      6-1/2 in
Material      :      Cast Iron
Nominal/Diameter Size      :      3/4 in
Pressure Rating      :      200
Series      :      FTI200
Temperature Rating      :      450 deg F
  • 200 psig at 450 deg F Maximum allowable pressure
  • 450 deg F at 0 to 200 psig Maximum allowable temperature
  • Inline horizontal piping configuration
  • Stainless steel internals
